Wiper & Washer Fluid Controller

Ideal for any wiper motor and washer fluid pump

The compact and waterproof Wiper & Washer Fluid Controller is suited for all wiper motors and pumps. Compatible with momentary switches, it replaces bulky traditional ones, and remains user-friendly despite its advanced features. It monitors voltage, calibrates easily, and has PWM-controlled outputs for wiper and fluid functions. It supports three speeds and activates fluid with a long press. MRS Cloud Connect compatible, it interfaces with 7" and 10" MRS Displays.

Main Features

  • Synchronization of the wipers
  • 2 outputs with PWM control, supporting wiper motor and washing fluid
  • Fully compatible with standard momentary switches
  • Single button control – supports 3 different speeds; Long press activates the washer fluid pump
Wiper & Washer Controller
Wiper & Washer Fluid Controller Solution

Easy installation

  • Easy calibration, no specialized tools or software is required
  • Time efficient, no need to spend hours on complex wiring
  • Reduced risk of installation errors thanks to simple instructions
  • On-site assistance by our expert team as required

Specifications

Operating Voltage

9-32 V, Overvoltage protection > 33 V
Reverse polarity protected

Outputs

2 × 10 A
2 high current outputs, max. 15 A @ 40 °C, max. 10 A @ 85°C
Current & Voltage monitoring, Overcurrent protection

Inputs

3x multifunction inputs
(configurable as current, voltage or frequency inputs)

Standby mode current

25 mA @ 12 V

Communication

CAN bus, NMEA compatible

Certification

CE, ROHS, ECE R10 057515

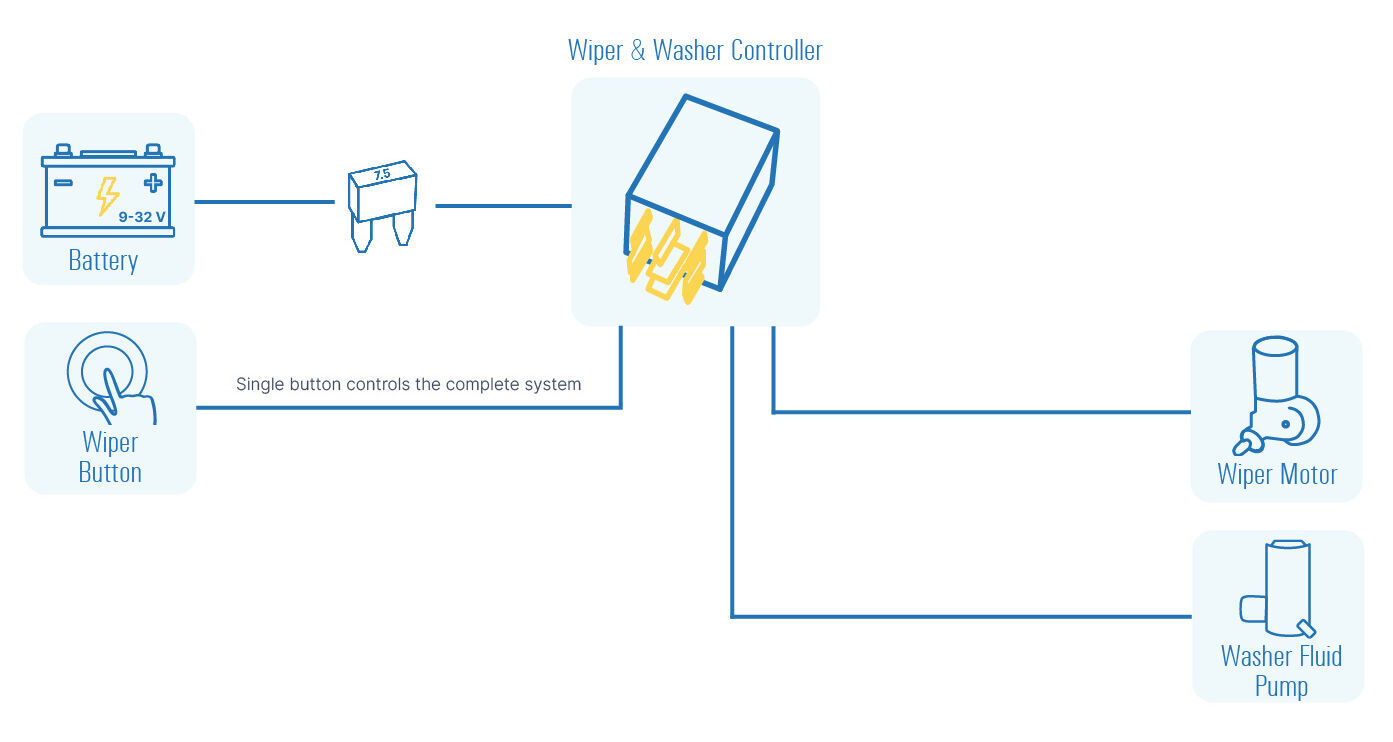

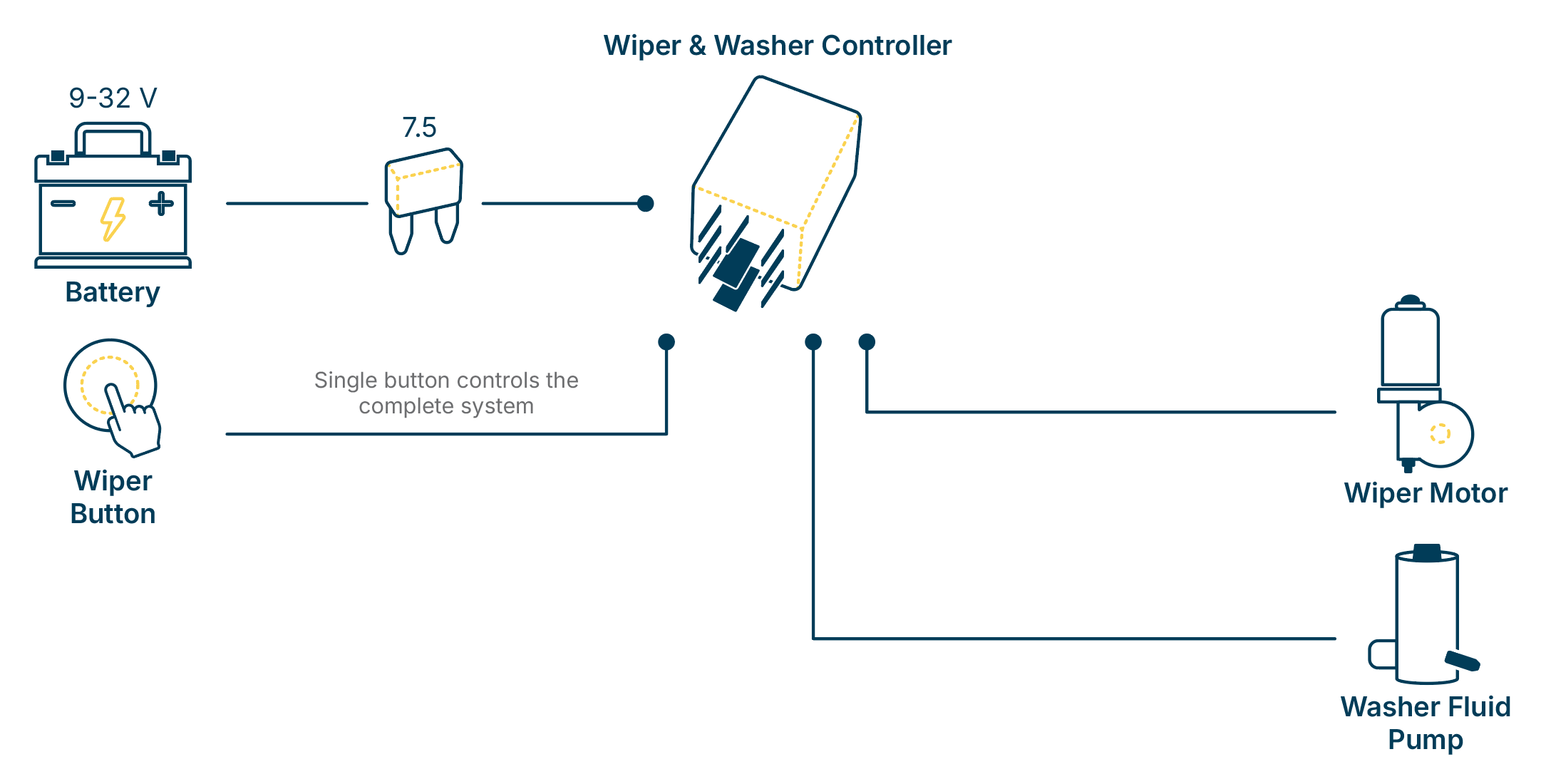

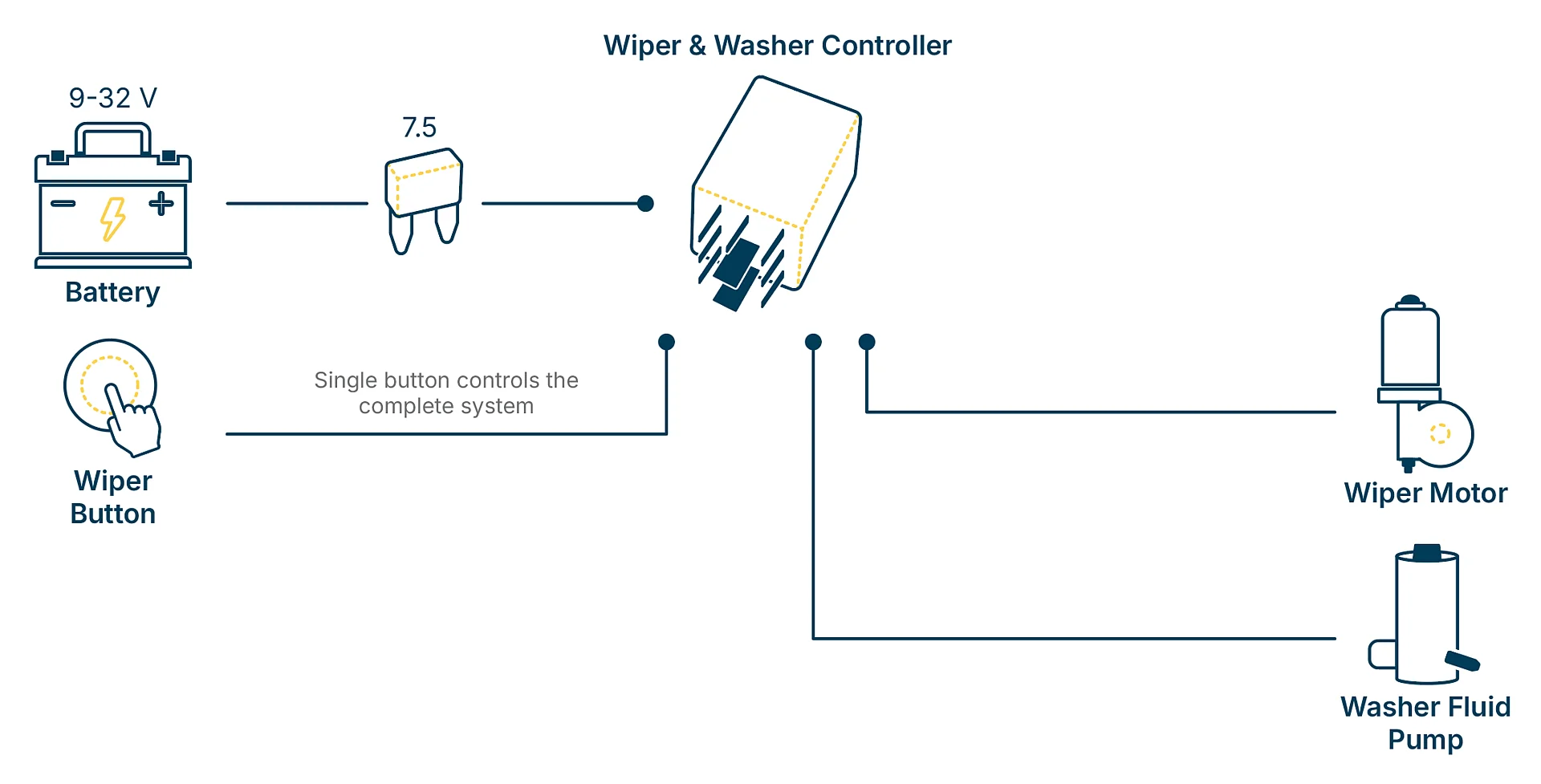

Connection diagram

Wiper & Washer Controller

Whats included

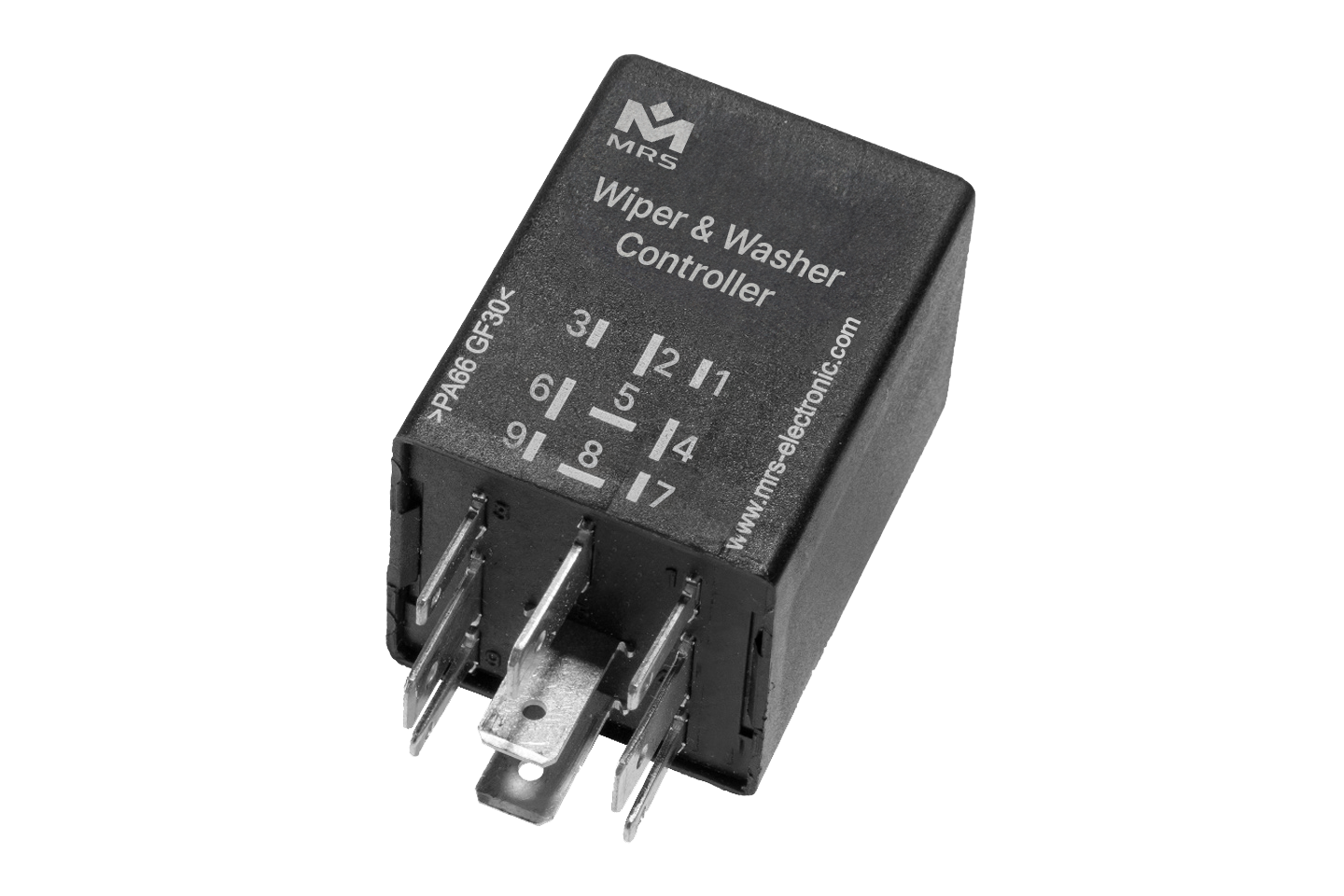

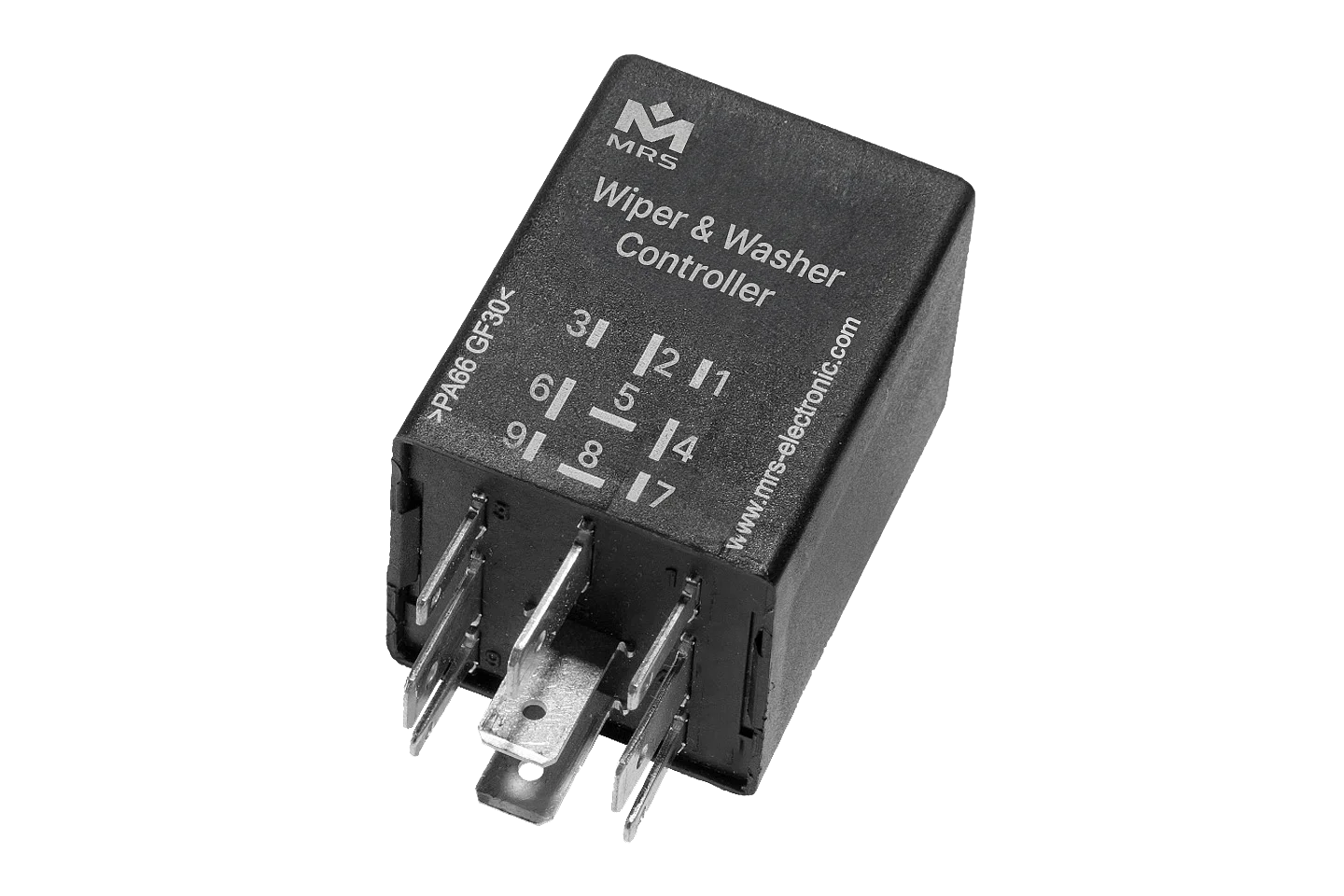

[Translate to English:] Wiper & Washer Controller

Wiper & Washer Controller

[Translate to English:] Cable Harness

Cable Harness
