Solutions

Control various applications of your boats & yachts

Management and monitoring solutions are becoming increasingly important in the maritime sector. With our robust maritime solutions, you can implement various applications to cost-effectively upgrade and easily optimize existing boats or yachts.

Marine Solutions

Bilge Pump Controller Solution

Bilge Pump Controller

Designed specifically to control and operate the bilge pump based on the inputs of the main & alarm floats.

RGB Lights Controller Solution

RGB Lights Controller

Cost-effective solution that enables you to use standard momentary switches to change color and brightness of the light.

Wiper & Washer Fluid Controller Solution

Wiper & Washer Fluid Controller

The compact and waterproof Wiper & Washer Fluid Controller is suited for all wiper motors and pumps.

Freshwater Pump Controller Solution

Freshwater Pump Controller

Designed to control and operate the freshwater pump using a high-quality pressure sensor.

Waterproof Products

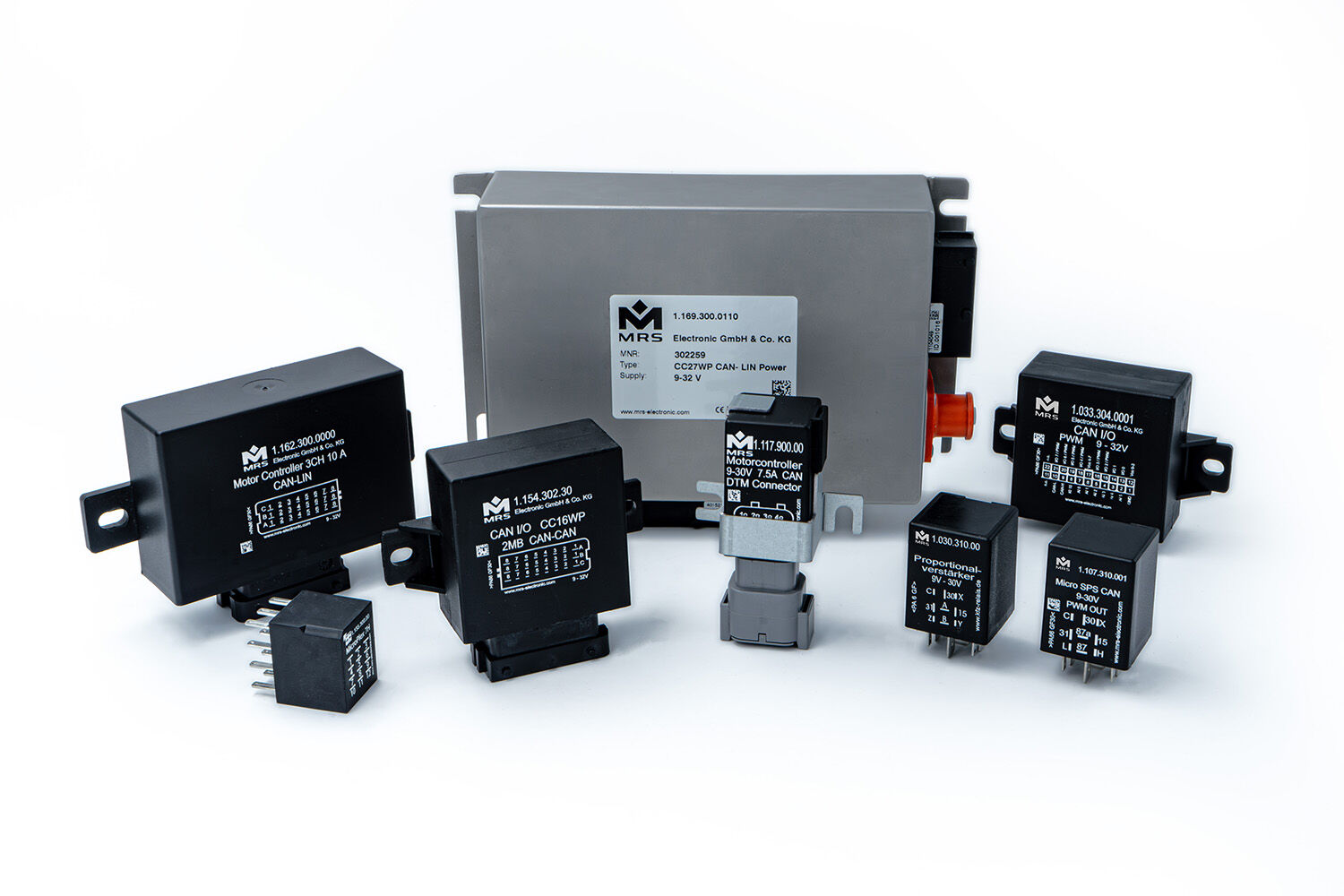

Controller & Gateways

CAN I/O – CC16WP

Article number : 1.154.x

  • Operating voltage:  9-32 V
  • CAN interface(s):  2
  • In-/Outputs (total):  15
  • Inputs (total):  7
  • I/Os (total):  8
  • IP rating:  IP6K8

CC27WP

Article number : 1.169

  • Operating voltage:  9-32 V
  • CAN interface(s):  3
  • In-/Outputs (total):  27
  • Inputs (total):  7
  • I/Os (total):  16
  • IP rating:  IP6K8

Micro PLC CAN Relay 32-bit

Article number : 1.158

  • Operating voltage:  9-32V
  • CAN interface(s):  1
  • In-/Outputs (total):  4
  • Inputs (total):  2
  • Outputs (total):  2
  • IP rating:  up to IP6K8

CAN I/O PLC Waterproof

Article number : 1.053.x

  • Operating voltage:  9-32 V
  • CAN interface(s):  1
  • In-/Outputs (total):  14
  • Inputs (total):  6
  • I/Os (total):  8
  • IP rating:  IP6K8

Micro PLC CAN 4 I/O

Article number : 1.111.311.00

  • Operating voltage:  9-32 V
  • CAN interface(s):  1
  • In-/Outputs (total):  4
  • I/Os (total):  4
  • IP rating:  up to IP6K8

Micro PLC CAN 4 ANA

Article number : 1.112.x

  • Operating voltage:  9-32 V
  • CAN interface(s):  1
  • In-/Outputs (total):  4
  • I/Os (total):  4
  • IP rating:  up to IP6K8

M3600 CAN PLC

Article number : 1.300.x

  • Operating voltage:  9-32 V
  • CAN interface(s):  3
  • In-/Outputs (total):  38
  • Inputs (total):  18
  • Outputs (total):  10
  • I/Os (total):  10
  • IP rating:  IP68

M2600 ECO CAN PLC

Article number : 1.261.x

  • Operating voltage:  9-32 V
  • CAN interface(s):  3
  • In-/Outputs (total):  26
  • Inputs (total):  14
  • Outputs (total):  4
  • I/Os (total):  8
  • IP rating:  IP65

PROP CAN 2CH

Article number : 1.168.

  • Operating voltage:  9-32 V
  • CAN interface(s):  1
  • In-/Outputs (total):  4
  • Inputs (total):  2
  • Outputs (total):  2
  • IP rating:  IP23

MicroPlex® 7X

Article number : 1.132.300.00

  • Operating voltage:  9-32 V
  • CAN interface(s):  1
  • In-/Outputs (total):  7
  • Inputs (total):  3
  • I/Os (total):  4
  • IP rating:  up to IP67

Motor Controller 10 A CAN

Article number : 1.117.x

  • Operating voltage:  9-32 V
  • CAN interface(s):  1
  • In-/Outputs (total):  3
  • Inputs (total):  3
  • Outputs (total):  1
  • Fullbridge:  1

Micro PLC 9-30 V

Article number : 1.005.3x

  • Operating voltage:  9-30 V
  • In-/Outputs (total):  7
  • Inputs (total):  4
  • Outputs (total):  3
  • IP rating:  up to IP6K8

Proportional Amplifier 9-30 V

Article number : 1.030.x

  • Operating voltage:  9-30 V
  • In-/Outputs (total):  5
  • Inputs (total):  4
  • Outputs (total):  1
  • IP rating:  IP53

Micro Gateway 32-bit

Article number : 1.156.x

  • Operating voltage:  9-32 V
  • CAN interface(s):  2
  • CAN FD interface(s):  2
  • LIN interface(s):  2
  • In-/Outputs (total):  2
  • I/Os (total):  2
  • IP rating:  up to IP6K8

Relays

Solid State Relay SSR 150 A CAN

Article number : 1.170

  • Operating voltage:  9-32 V
  • Outputs (total):  1
  • Quiescent current (12V):  27 µA
  • Quiescent current (24V):  21 µA
  • Switching current:  200A @ 25 °C
  • IP rating:  IPX8

Solid State Relay SSR 5 A

Article number : 1.069.30x.05

  • Operating voltage:  9-32 V
  • Outputs (total):  1
  • Number of pins:  5
  • Switching current:  5 A
  • IP rating:  up to IP6K8

Solid State Relay SSR 25 A

Article number : 1.069.30x.25

  • Operating voltage:  9-32 V
  • Outputs (total):  1
  • Number of pins:  5
  • Switching current:  25 A
  • IP rating:  up to IP6K8

Time Relay SW on/off Delay 12 V

Article number : 1.003.19z.xx

  • Operating voltage:  9-16 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  NO 15 A / NC 15 A
  • Switching cycles:  100000
  • IP rating:  up to IP6K8

Toggle Relay 12 V

Article number : 1.001.10x.01

  • Operating voltage:  9-16 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  NC 20 A / NO 20 A
  • IP rating:  up to IP6K8

Voltage Monitor 12 V

Article number : 1.008.1x

  • Operating voltage:  10-16 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  NC 15 A / NO 5 A
  • Switching cycles:  50000
  • IP rating:  IP53

Universal Flasher LED 12 V

Article number : 1.007.11x

  • Operating voltage:  9-16 V
  • Outputs (total):  5
  • Blink frequency:  90 +/-30 pulses/min
  • Number of pins:  9
  • Switching current:  4 x 2 A
  • IP rating:  IP53

Flasher M3 12 V

Article number : 1.007.19x

  • Operating voltage:  9-16 V
  • Outputs (total):  1
  • Blink frequency:  90 +/-30 pulses/min
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  NO 20 A / NC 15 A
  • Switching cycles:  100000
  • IP rating:  up to IP6K8
