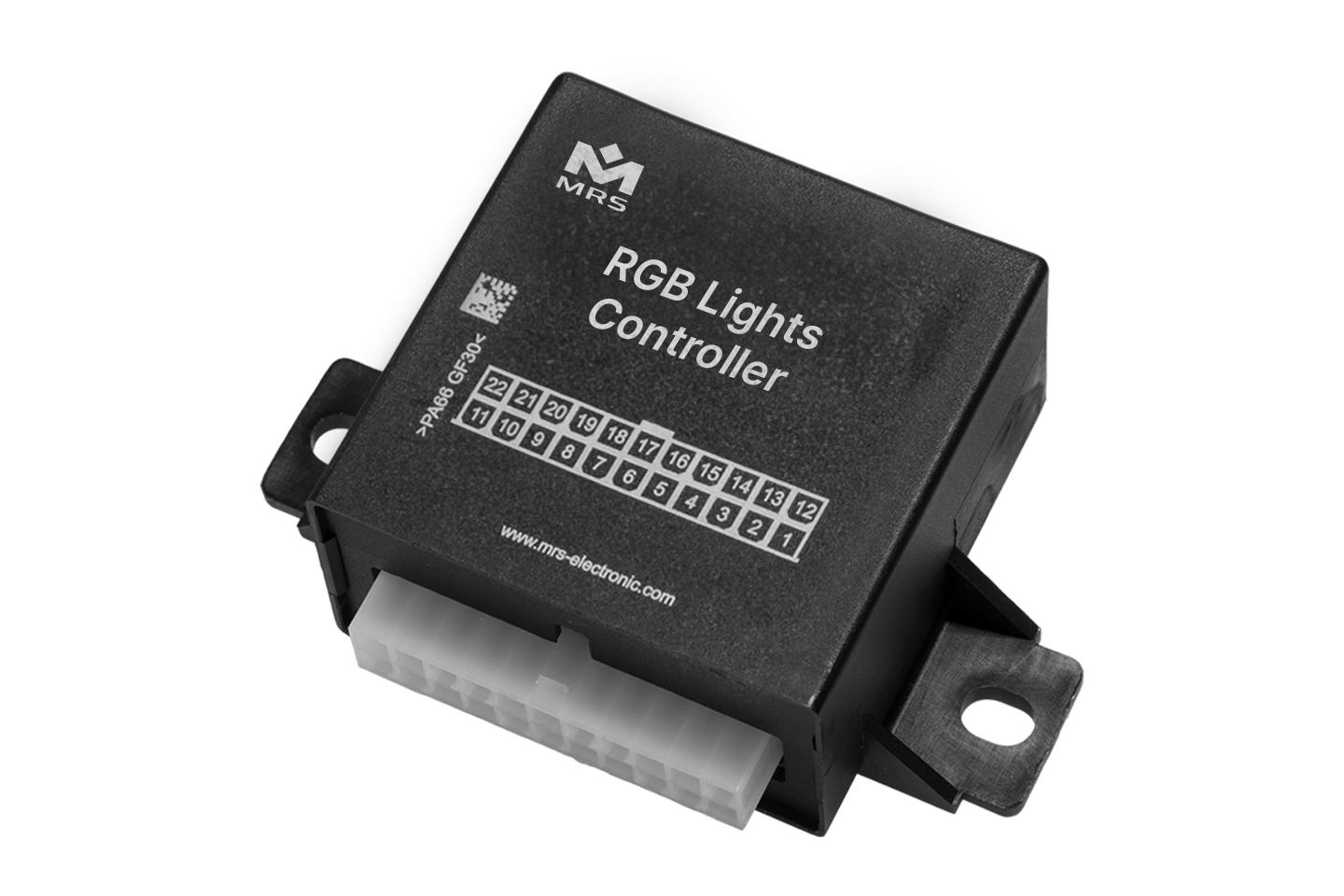

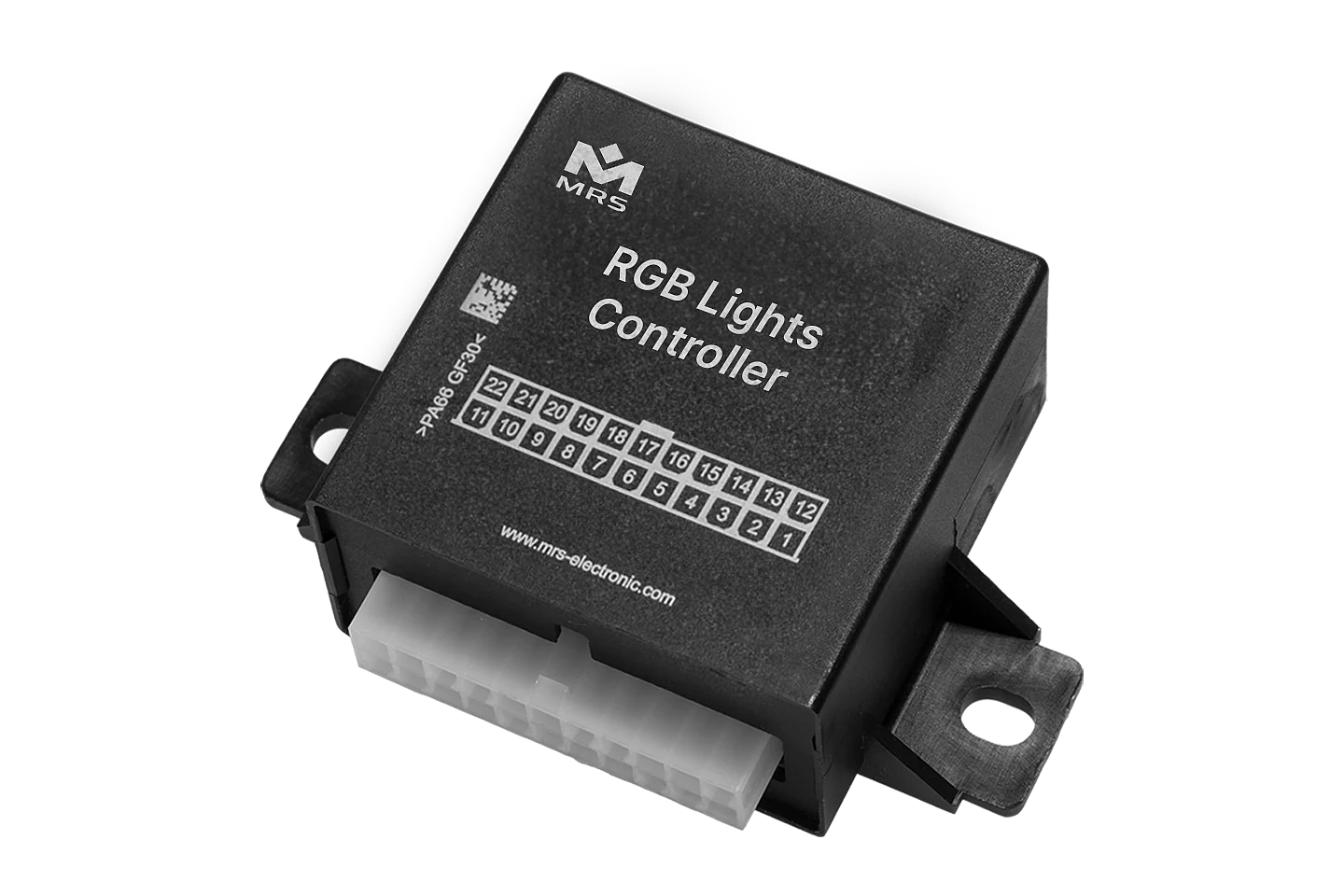

RGB Lights Controller

Cost-effective solution for changing color and brightness of RGB lights

Since people respond cognitively and emotionally to light, colors have very significant effects on our mood and perception of space. That's why we designed this RGB Lights Controller. It is a cost-effective solution that enables you to use standard momentary switches to change color and brightness of the light.

Main Features

Soft start, dimming, and soft shut-down feature
9 standard color options are available, can be customized on customer request
Fully compatible with standard momentary switches
MRS Cloud Connect compatible via cellular network or Wi-Fi

RGB Lights Controller

RGB Lights Controller Solution

Easy Installation

Easy calibration, no specialized tools or software is required
Time efficient, no need to spend hours on complex wiring
Reduced risk of installation errors thanks to simple instructions
On-site assistance by our expert team as required

Specifications

Operating Voltage

9-32 V, Overvoltage protection > 33 V
Reverse polarity protected

Outputs

4x Low Side, 2.5 A each @ 40 °C
2x High Side, 5 A each @ 40 °C
Current & Voltage monitoring, Overcurrent protection

Inputs

6x multifunction inputs
(configurable as current, voltage or frequency inputs)

Standby mode current

30 mA @ 12 V

Communication

CAN bus, NMEA compatible

Certification

CE, ROHS, ECE R10 057515

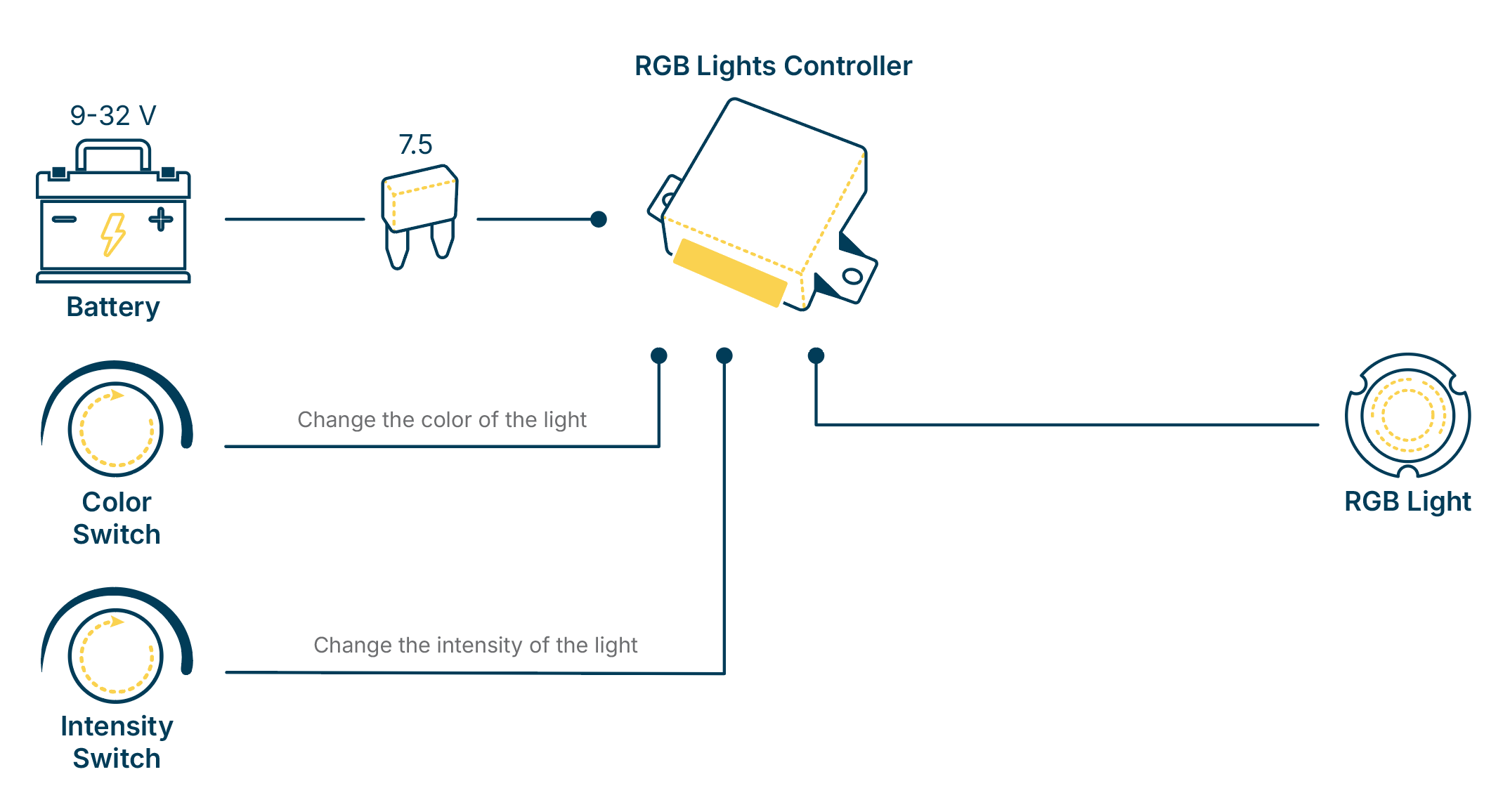

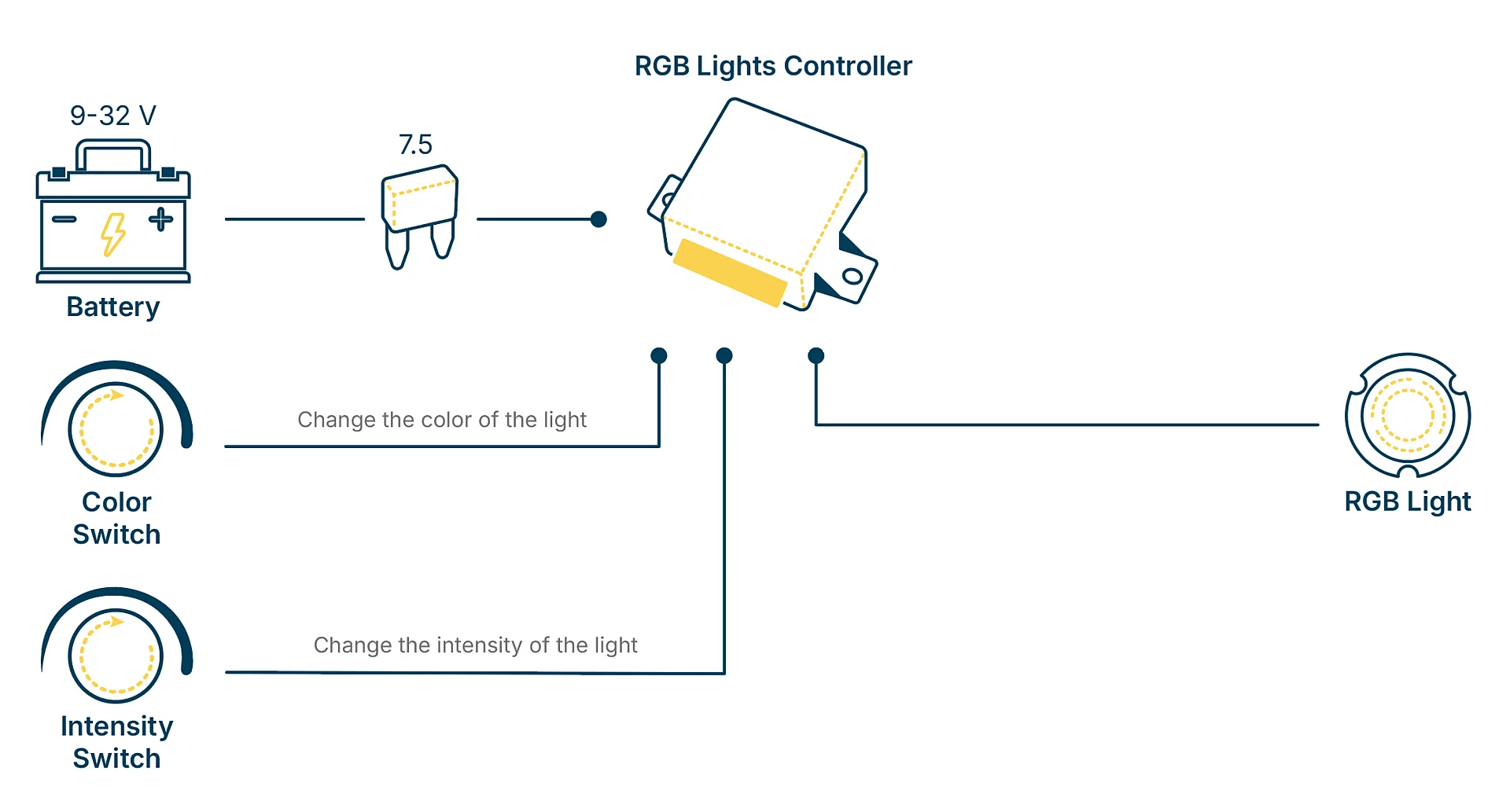

Connection diagram

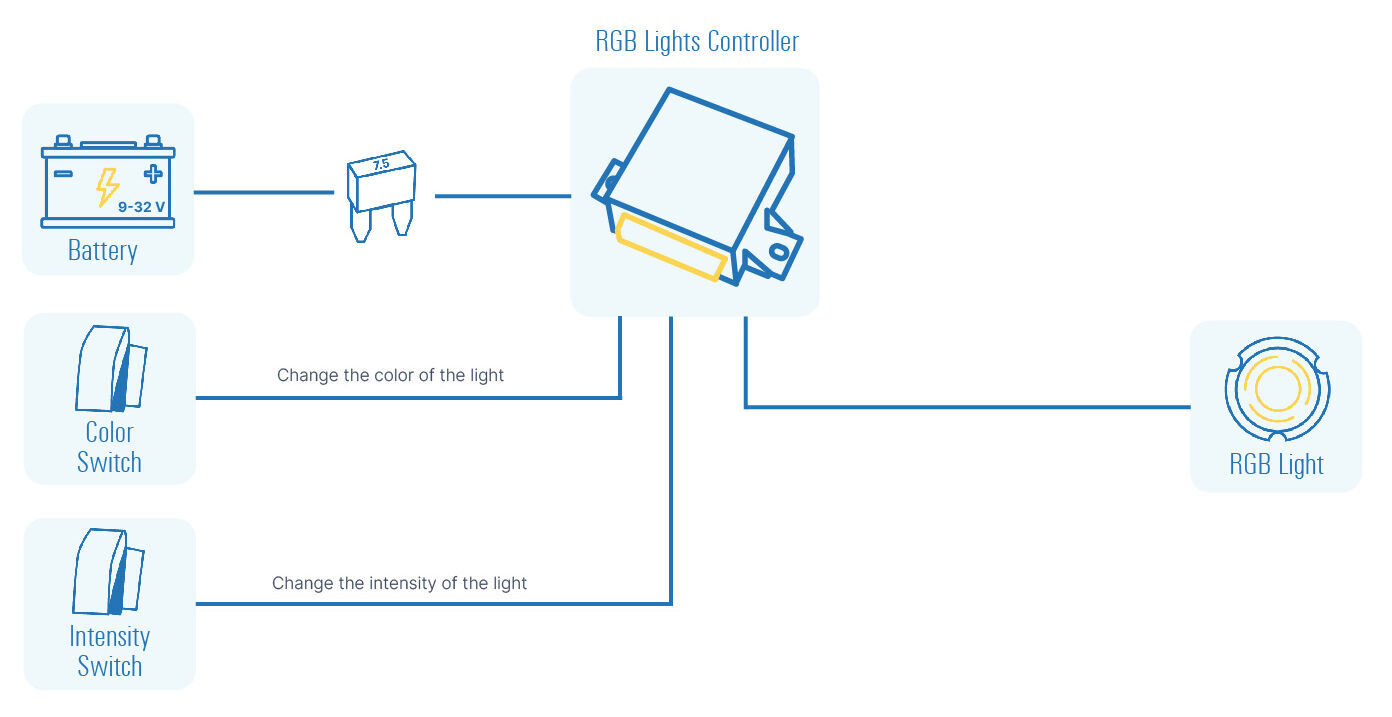

[Translate to English:] RGB Lights Controller Connection diagram

Parts

Controller

Cable Harness
