Freshwater Pump Controller

Control and manage your freshwater pump

Designed to control the freshwater pump using a high-quality pressure sensor, this device boasts intelligent features, enhancing pump reliability and noise reduction. With an intuitive interface, it requires no specialized tools for calibration. The FWPC offers two PWM-controlled outputs, an audible warning, and arrives ready-to-install with necessary accessories. Energy efficient, it's also "MRS Cloud Connect" compatible. If the sensor malfunctions, the system relies on the pressure switch for operation.

Main Features

  • Significant noise reduction by optimizing the water pump RPM’s
  • Consistent water pressure – smooth operation of the water pumps
  • Predictive maintenance – detection of the pump working irregularly (Buzzer)
  • Pressure sensor included - in case of any malfunction from the sensor, the system will continue to operate based on the info from the FWPC
Freshwater Pump Controller
Freshwater Pump Controller Solution

Easy Installation

  • Easy calibration, no specialized tools or software is required
  • Time efficient, no need to spend hours on complex wiring
  • Reduced risk of installation errors thanks to simple instructions
  • On-site assistance by our expert team as required

Specifications

Operating Voltage

9-32 V, Overvoltage protection > 33 V
Reverse polarity protected

Outputs

2 × 10 A
2 high current outputs, max. 15 A @ 40 °C, max. 10 A @ 85°C
Current & Voltage monitoring, Overcurrent protection

Inputs

3x multifunction inputs
(configurable as current, voltage, or frequency inputs)

Standby mode current

25 mA @ 12 V

Communication

CAN bus, NMEA compatible

Certification

CE, ROHS, ECE R10 057515

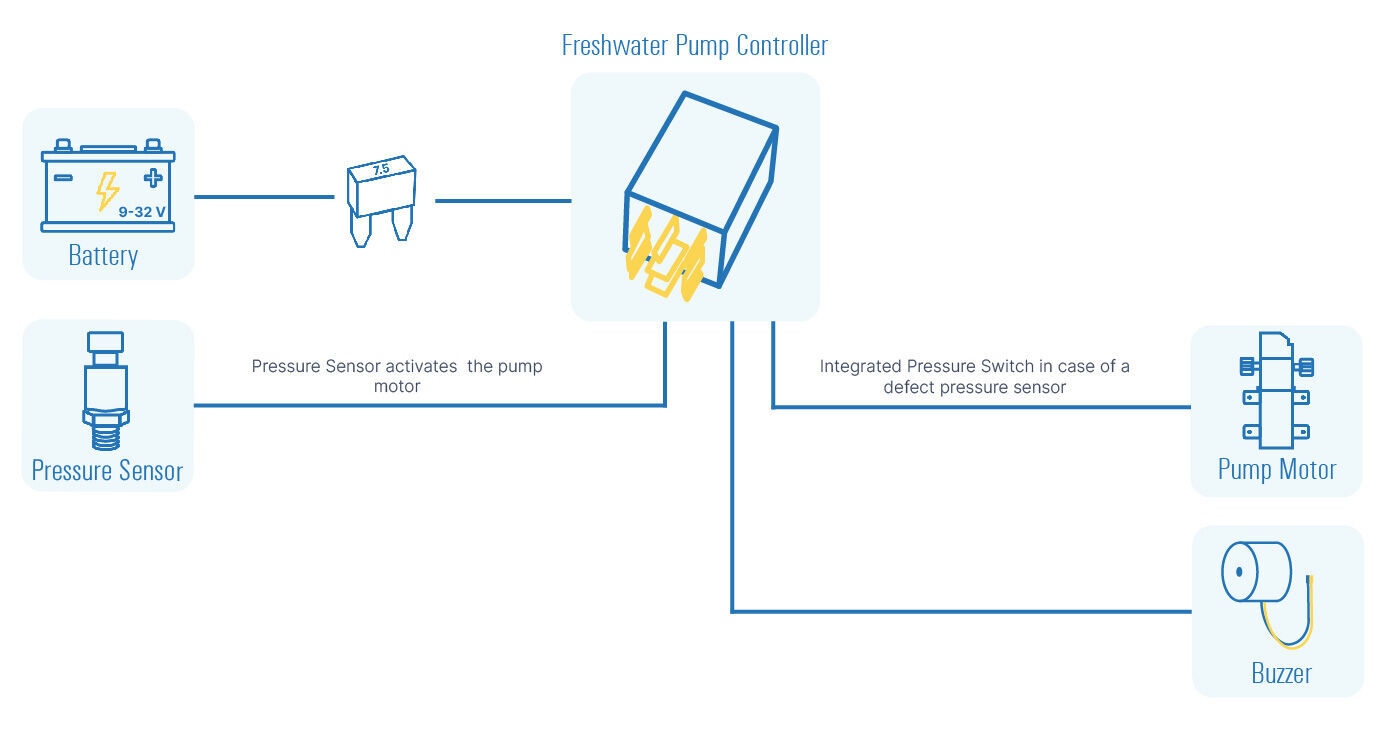

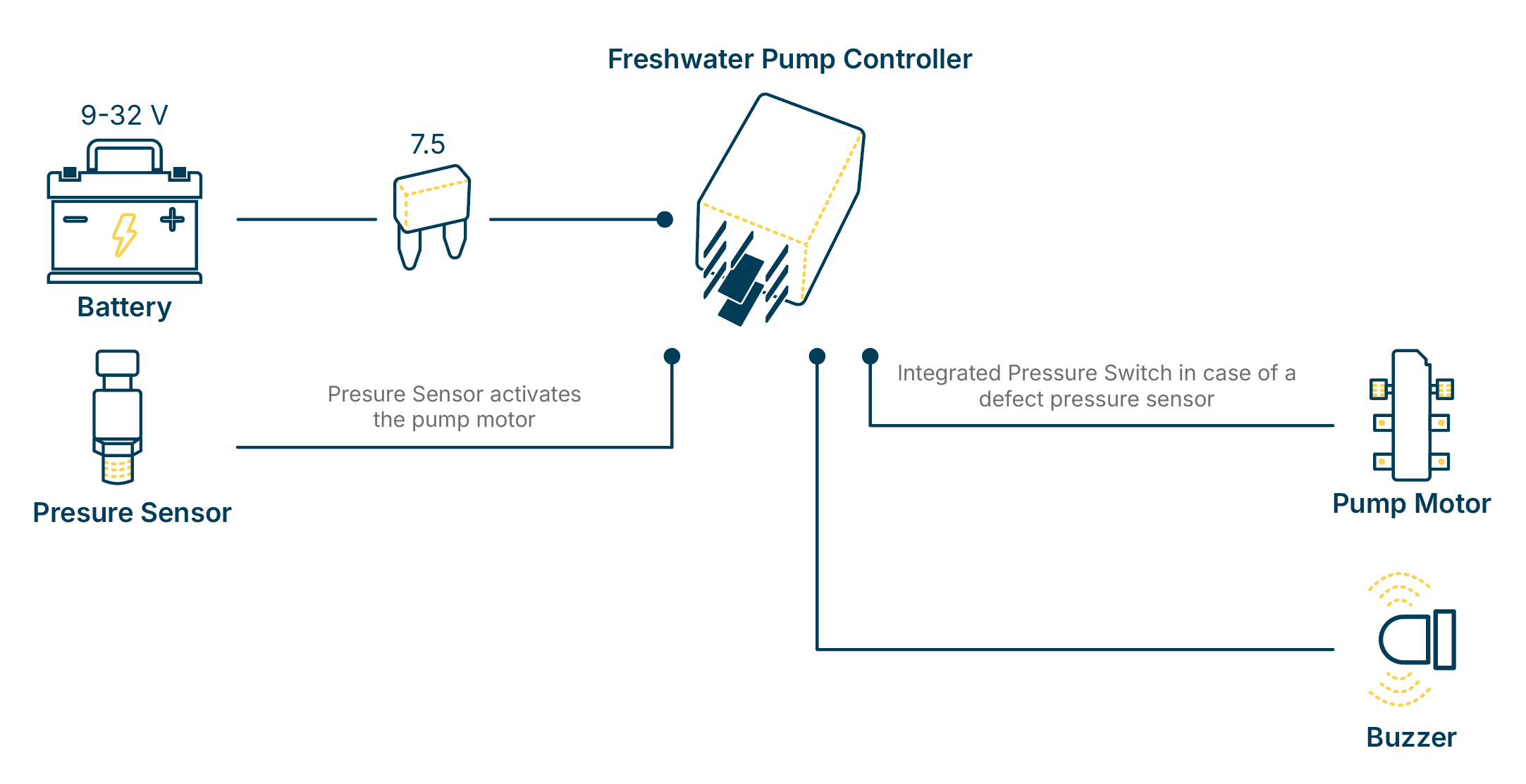

Connection diagram

Freshwater Pump Connection diagram

Whats included

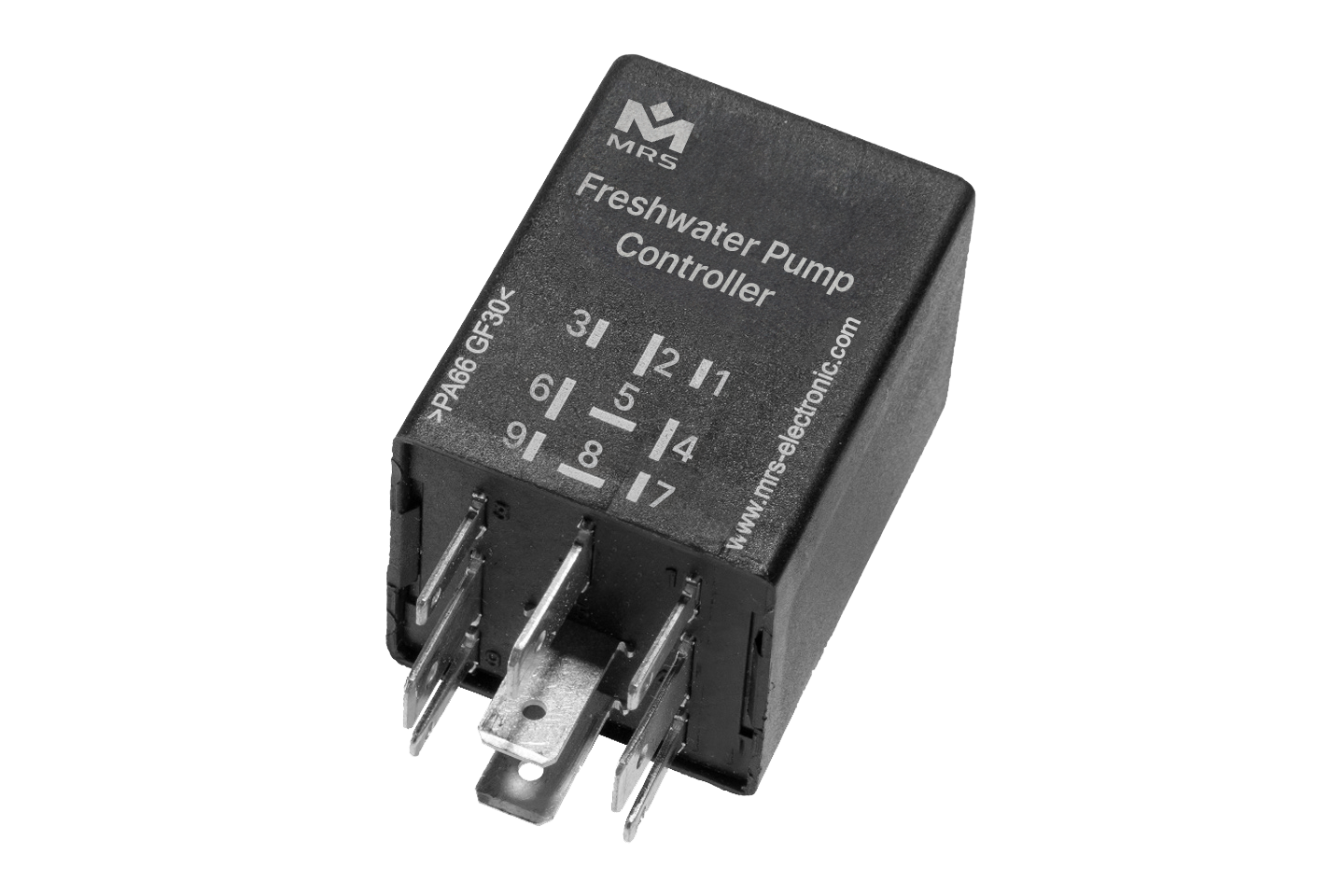

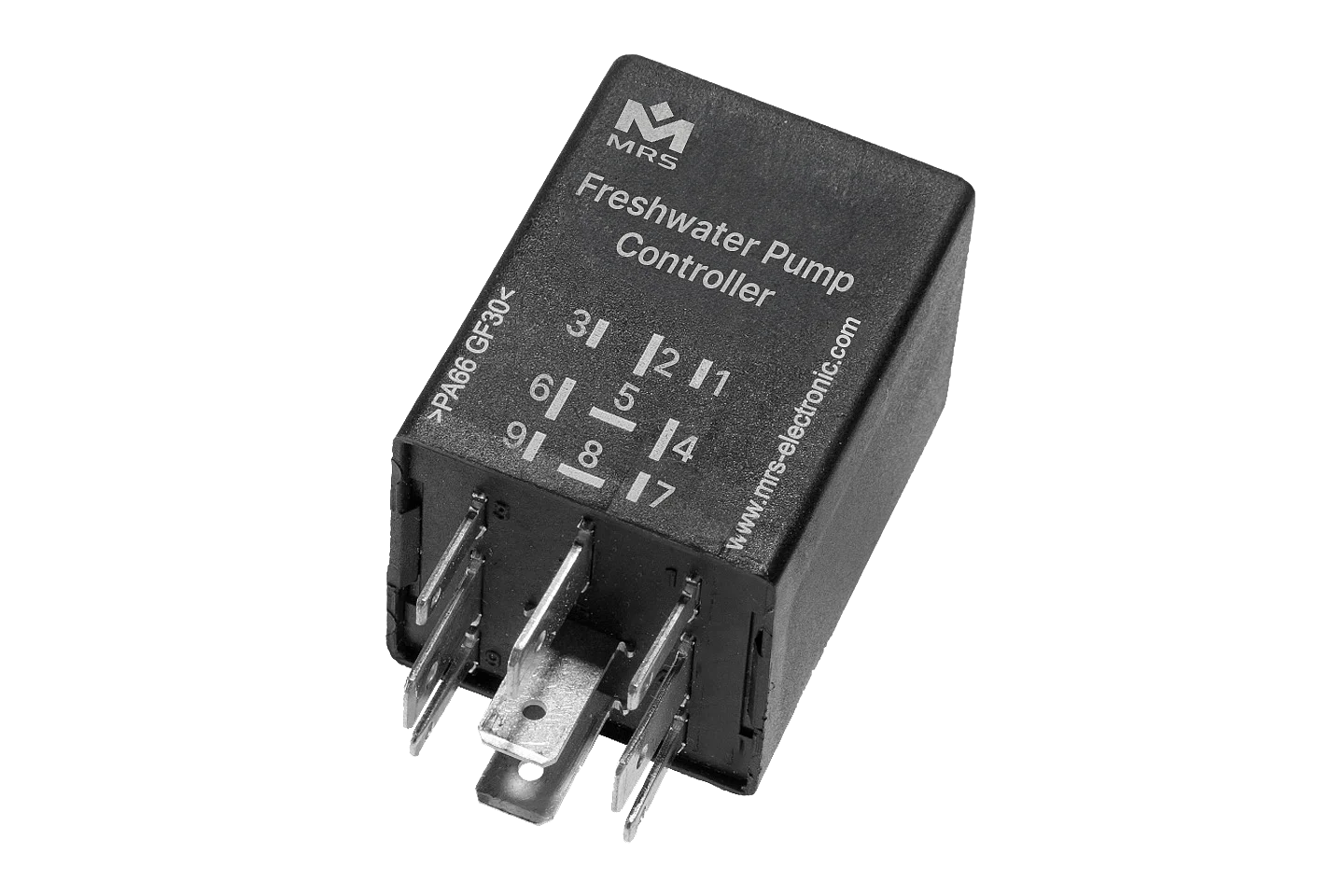

[Translate to English:] Freshwater Pump Controller

Freshwater Pump Controller

Pressure Sensor

Pressure Sensor

[Translate to English:] Cable Harness

Cable Harness

[Translate to English:] Audible Warning Device

Audible Warning Device
