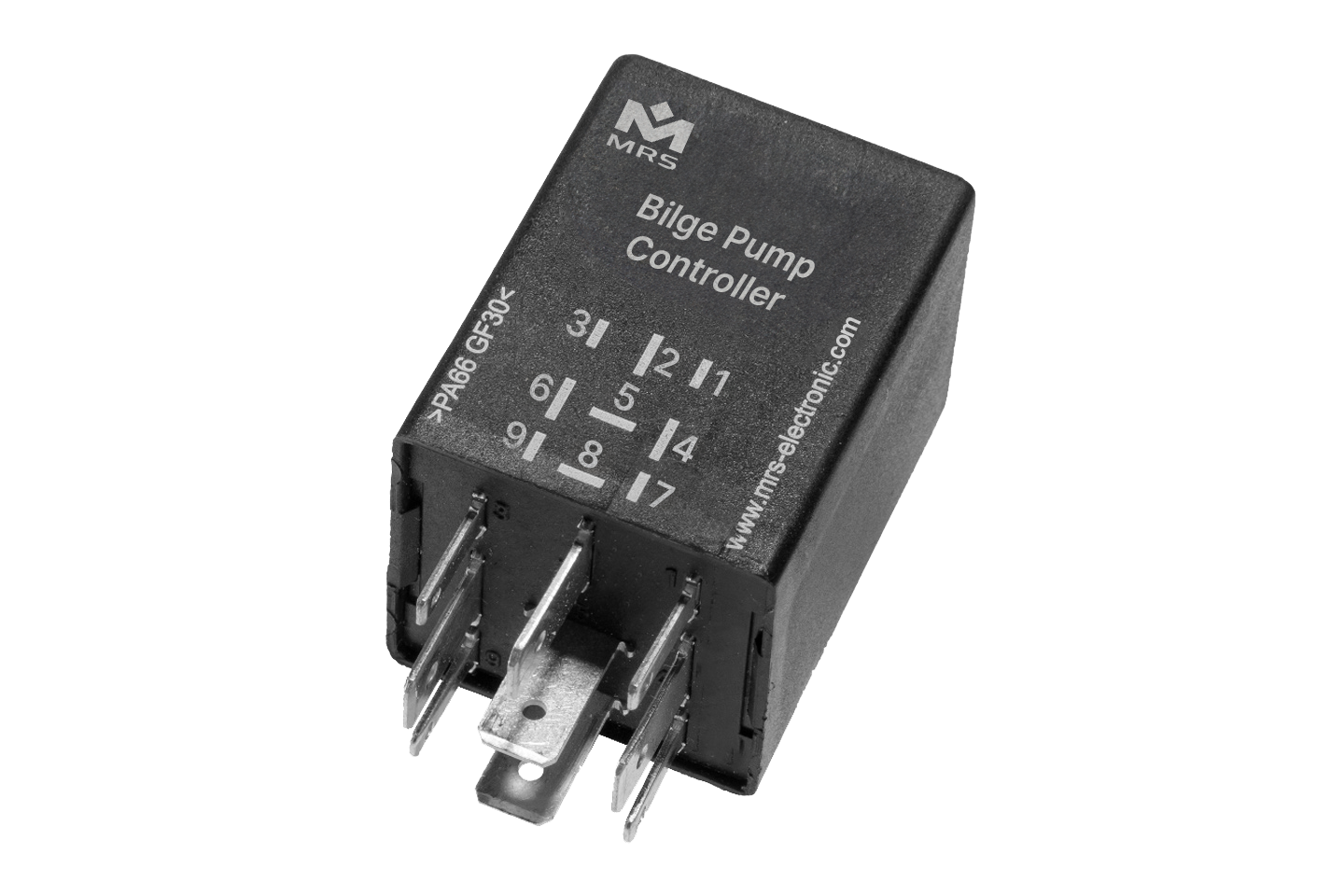

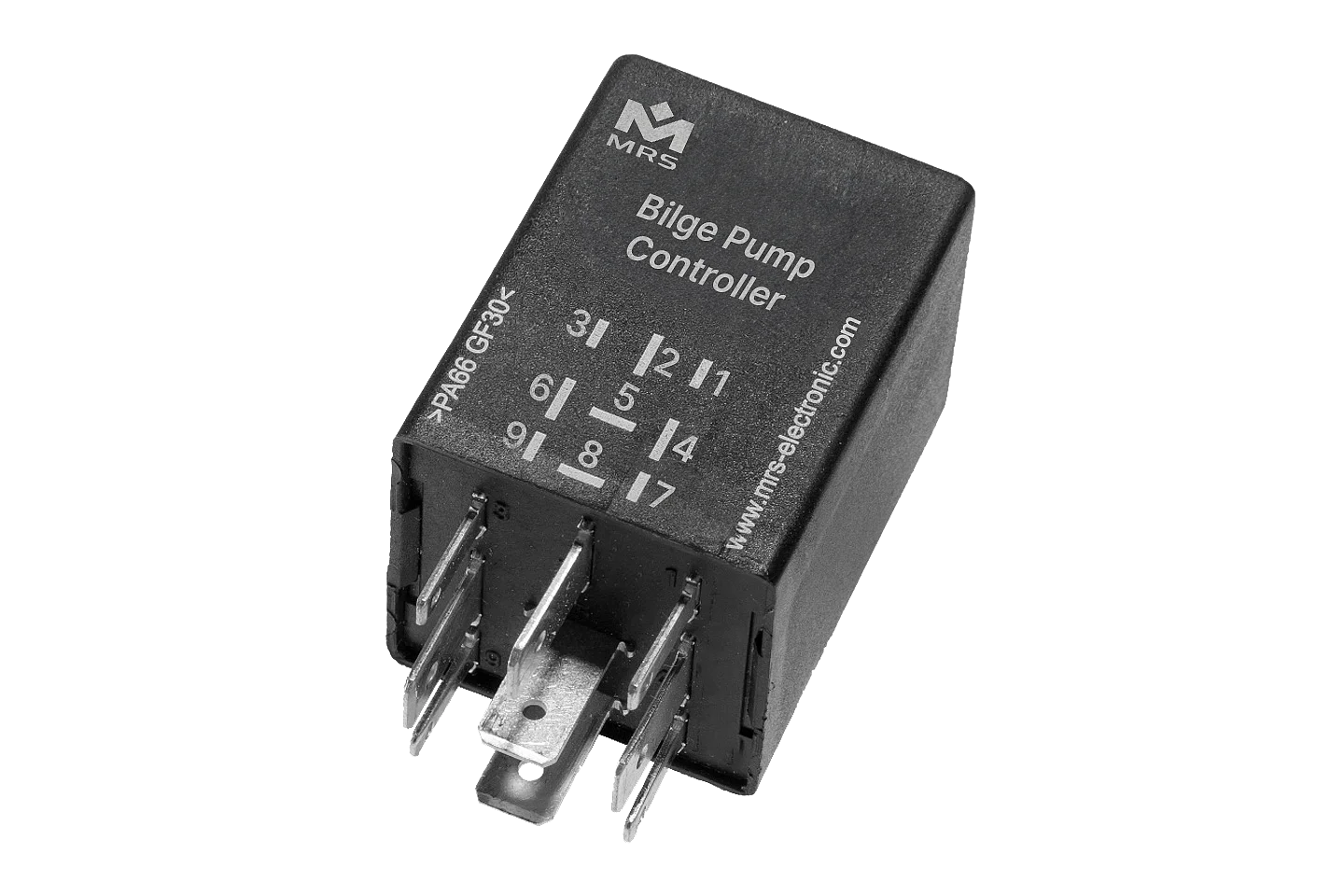

Bilge Pump Controller

Control and operate the bilge pump

Designed specifically to control and operate the bilge pump based on the inputs of the main & alarm floats. The system has very low current consumption and wakes up from float or manual/auto button. Many smart features are present such as activation delay, sleep mode, parameter monitoring, etc.

Main Features

Electronic on/off – extends lifetime of the pump
Delay off feature
Predictive maintenance – detection of the pump working irregularly (Buzzer)
Dual float setup, standard system connects both main & alarm float
MRS Cloud Connect compatible via cellular network or Wi-Fi

Easy Installation

Easy calibration, no specialized tools or software is required
Time efficient, no need to spend hours on complex wiring
Plug-and-play solution, BPC has all the necessary accessories included
On-site assistance by our expert team as required

Specifications

Operating Voltage

9-32 V, Overvoltage protection > 33 V
Reverse polarity protected

Outputs

2 × 10 A
2 high current outputs, max. 15 A @ 40 °C, max. 10 A @ 85°C
Current & Voltage monitoring, Overcurrent protection

Inputs

3x multifunction inputs
(configurable as current, voltage, or frequency inputs)

Standby mode current

25 mA @ 12 V

Communication

CAN bus, NMEA compatible

Certification

CE, ROHS, ECE R10 057515

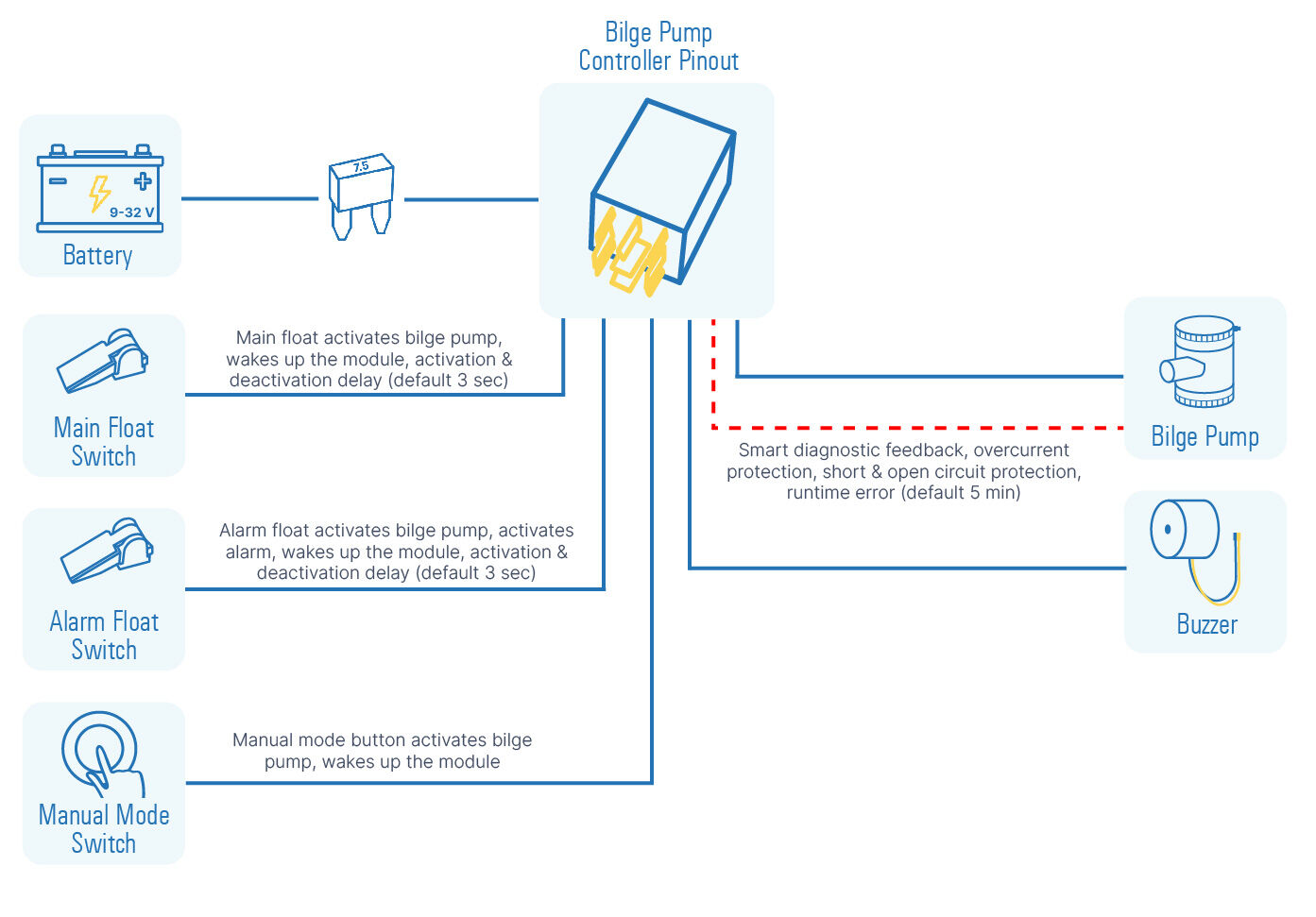

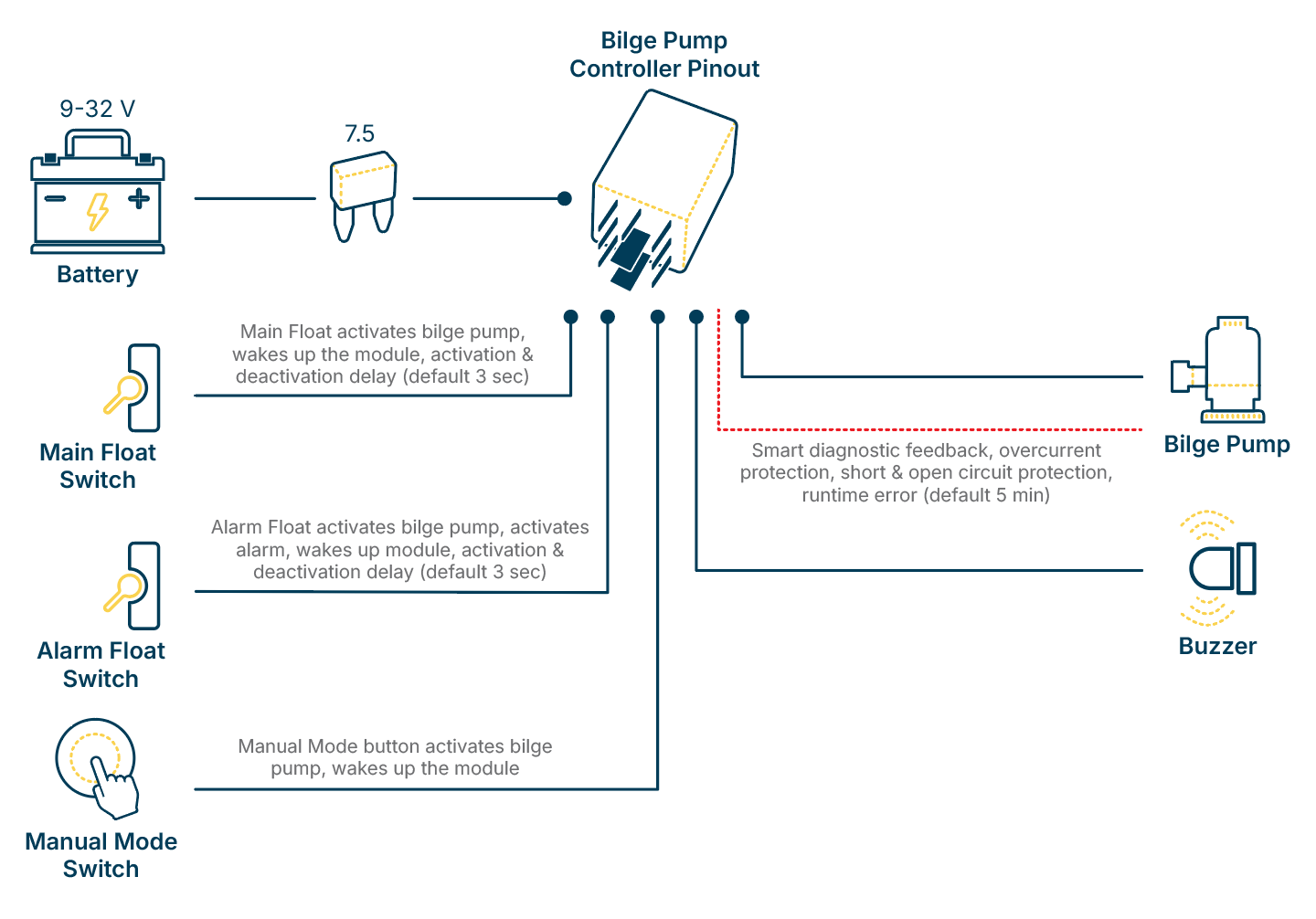

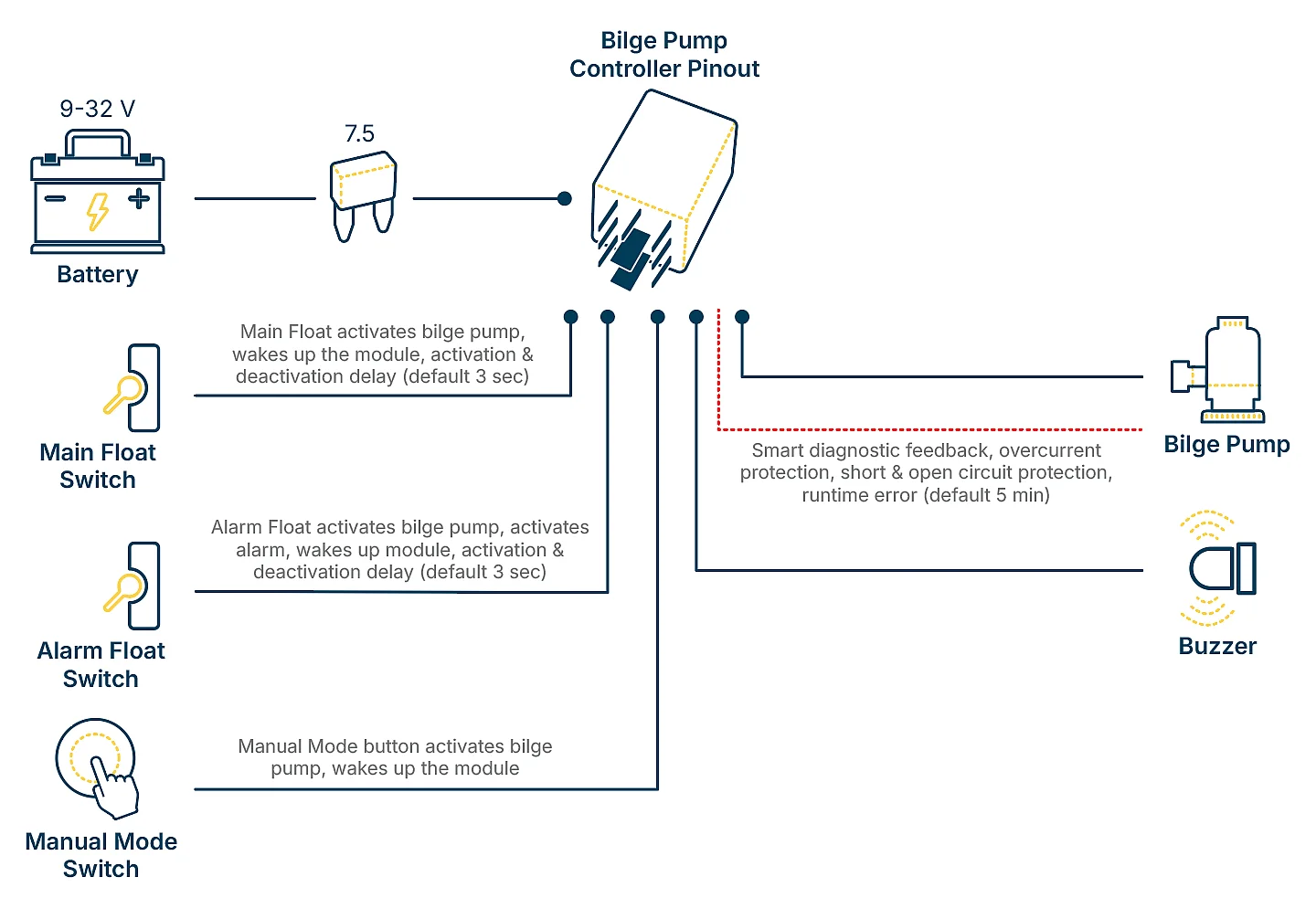

Connection diagram
